1 Client installation and uninstallation

Raysync client supports the installation of windows server 2008/ windows server 2012/ windows server 2016/windows 7/windows 8/windows 10/mac os 10.11 and above.

1.1 Download client

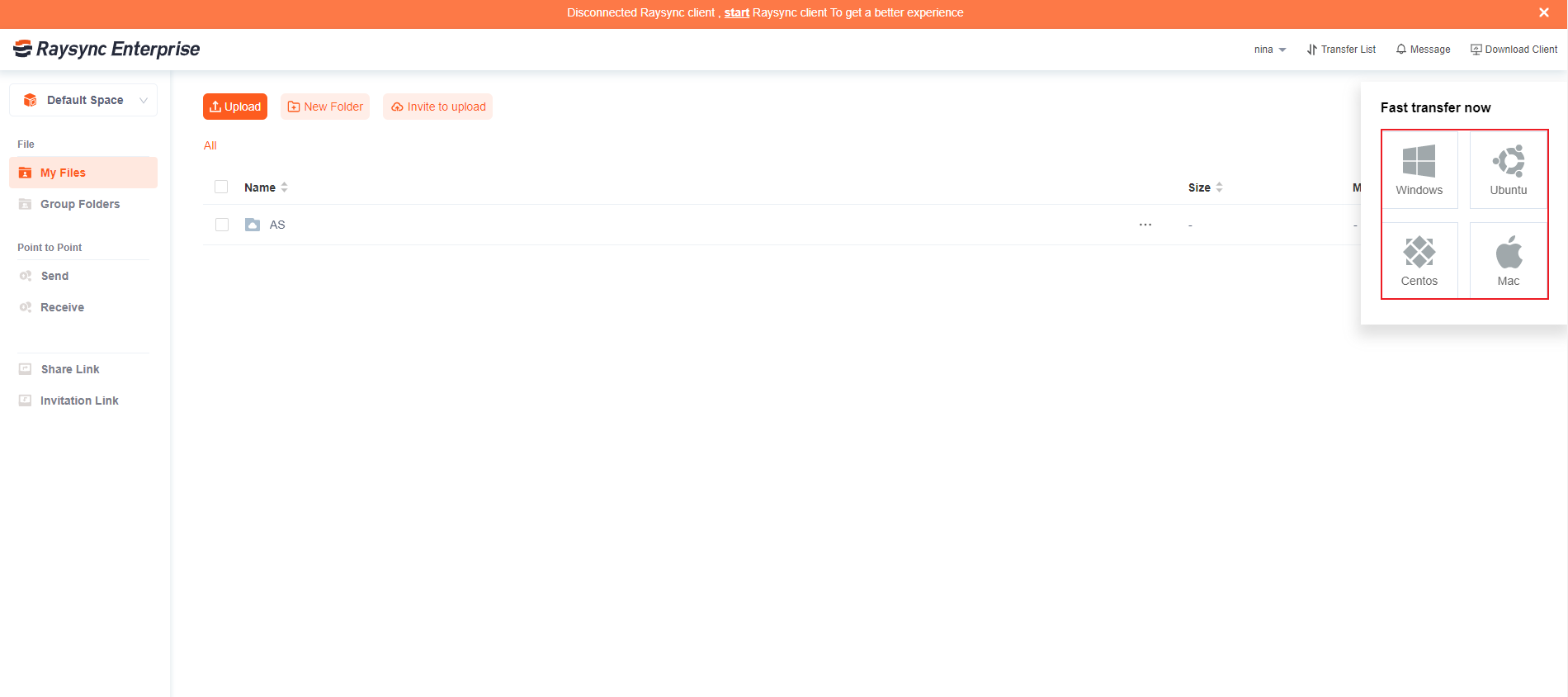

If the client is not installed or started, click the "Client Download" button and select the client of the corresponding platform to download. clientDownload en

1.2 Install the client

Installation process

After the download is successful, double-click to open to start the installation, as shown below
Read the software installation agreement and click I accept to proceed to the next step
Select the installation option and click Next
Select the components to be installed and click Next

install3-en

install4-en

Select the path to be installed and click Next

install5-en

Select Install, and click Finish after the installation is complete

install6-en

install7-en

install8-en

1.3 Start the client

Startup method 1

After the user logs in to the webpage, the system will check whether the Raysync client has been activated. If the Raysync client is not activated, it will automatically switch to the web page tcp connection mode, which only supports normal upload/normal download/invite to upload/ Share to download. If you need to use other functions, you need to start the Raysync client.
Click Transfer List on the Raysync front-end web page. The prompt dialog box for startup or download will pop up. Click the "Start" button.
A message is displayed asking you whether to open raysync-watch. exe. Click to open the application and wait until the startup is complete.

Startup method 2

If the message that the client is not connected pops up, click "Start".
A message is displayed asking you whether to open raysync-watch. exe. Click to open the application and wait until the startup is complete.

1.4 Uninstall the client

Uninstall method 1

Enter Windows "Control Panel" -> "Programs" -> "Programs and Features"
Select the Raysync client program, right-click to uninstall.

uninstall1-en

Uninstall method 2

Right-click on the desktop Raysync client icon, click Open file location
Select uninstall.exe, right-click the uninstall.exe program, select Run as administrator, and Confirm to remove the client.

uninstall2-2-en

uninstall-2-3-en

2 File Operations

Raysync supports two ways of transfer: web(without the client)and client. In the absence of a client (web), you can create a new folder/invite upload/download/share download/copy/move/delete/property/rename, while creating a synchronization task directory/previewing videos requires the installation of a client.

2.1 Upload file

Click Upload file with web Select the file to upload You can view the transfer progress of the selected uploaded file in the transfer list of bottom right corner of the web

uploadFile web

uploadFile web2

Click upload folder with web Select the folder to upload You can view the transfer progress of the selected uploaded files in a folder in the transfer list of bottom right corner of the web.(not applicable to empty folder)

uploadFolder web

uploadFolder web2

Click upload with client Select the file or folder to upload. You can view the transfer progress of the selected uploaded file in the transfer list of client.

transferList-en

Drag and drop upload You can select and drag the file or folder you want to upload from the file manager, long press the left mouse button, and drag to the file list position of the raysync website, until the upload to my file/a directory appears, release the left mouse button to upload all the dragged files.

First step：

drop

Second step：

drop 3

Third step：

drop 2

2.2 Download file

Select the file or folder to download Click the download with web,you can view the download progress of the selected file or folder in the browsers's downloads.

download Web

Select the file or folder to download Click the Download button or select Download in the operation bar
You can view the download progress of the selected file of folder in the transfer list of the client
After the file is downloaded, it will be saved in the selected path. Click the "Open File Directory" icon in the Raysync plugin to find the file just downloaded.

download Client

transferList-en

2.3 Create a new folder

Click the New Folder button
The default name of the new folder is "New Folder", you can enter a new folder name by yourself
After entering the name, click the Create button to complete

2.4 Rename

Select the file/folder to be renamed, and select Rename in the operation. Note: virtual directory does not support renaming on the client side
The file name becomes editable, enter the name that needs to be renamed
Enter the name and click OK to save

2.5 Delete files

Select the file/folder to be deleted, click the delete icon or select Delete in the operation

delete-en

2.6 Search

After clicking search, enter the name of the file/folder to be searched in the search box, such as: test
Click ENTER to search successfully

2.7 Moving files

Select the file, click the Move button or move within the operation
Select the directory you want to move to, click to move here

2.8 Copy files

Select the file, click the Copy button or copy within the operation
Select the directory to be copied to, click Copy to this

2.9 Folder Properties

Select the folder whose properties you want to view, and click Properties of the operation to view the properties of the folder. Note: View properties are not supported for file folders
Pop-up folder properties popup

2.10 Creat sync task

To use this synchronization function, you need the permission to use sync tasks in the user information configuration managed by the administrator in the server background. syncA

Click the Create Sync Directory Task button
Pop up a new synchronization directory pop-up box
Setup Instructions: Sync Directory
Enter the task name of the sync task, the source path, the target path, the sync frequency

Function	Description
Task name	The name of a synchronization task is displayed in the task list after it is successfully created.
Direction	1) One-way Synchronize files from the server to the local;Synchronize files locally to the server.When the source path is the server,the file is synchronized from the server to the local.When the source path is the calculator,the file is synchronized from the local to the server. 2) Two-way Raysync service will conduct two-way synchronization between radium speed server and local directories. If the original path is local and the target path is the server, after the two-way synchronization is enabled, Raysync will first upload the locaI directory files to the server directory,and then download the files of the server directory to the local directory,so as to maintain the consistency between the server directory and the local client directory files.
Source path	Select the source file path to be synchronized,support two-way synchronization,induding local to server or server to local, When selecting a file, you can use the [ctrl] key to select multiple paths of the same level.
Target path	Select the target path for synchronization to the server or local.
Sync schedule	Select the start time of the synchronization task,support two synchronization frequency settings. 1) Synchronize once a day at a fixed time. For example, select "Daily 18:22", the synchronization task will start synchronization at 18:22 every day. 2)Synchronize every time period. For example, select Every 60 seconds,the synchronization task will start synchronization every 60 seconds. 3)Synchronize once only. For example,select"Once 12:00",the synchronization task will start synchronization once at 12:00. 4)Synchronize by week If one or more dates are specified in a week,the synchronization will be performed at a certain time of the specified week. For example,if you set 20:14 synchronization on Monday and Wednesday every week,you can synchronize at 20:14 on Monday and Wednesday.

security

Turn on encrypted transfer

sync2a

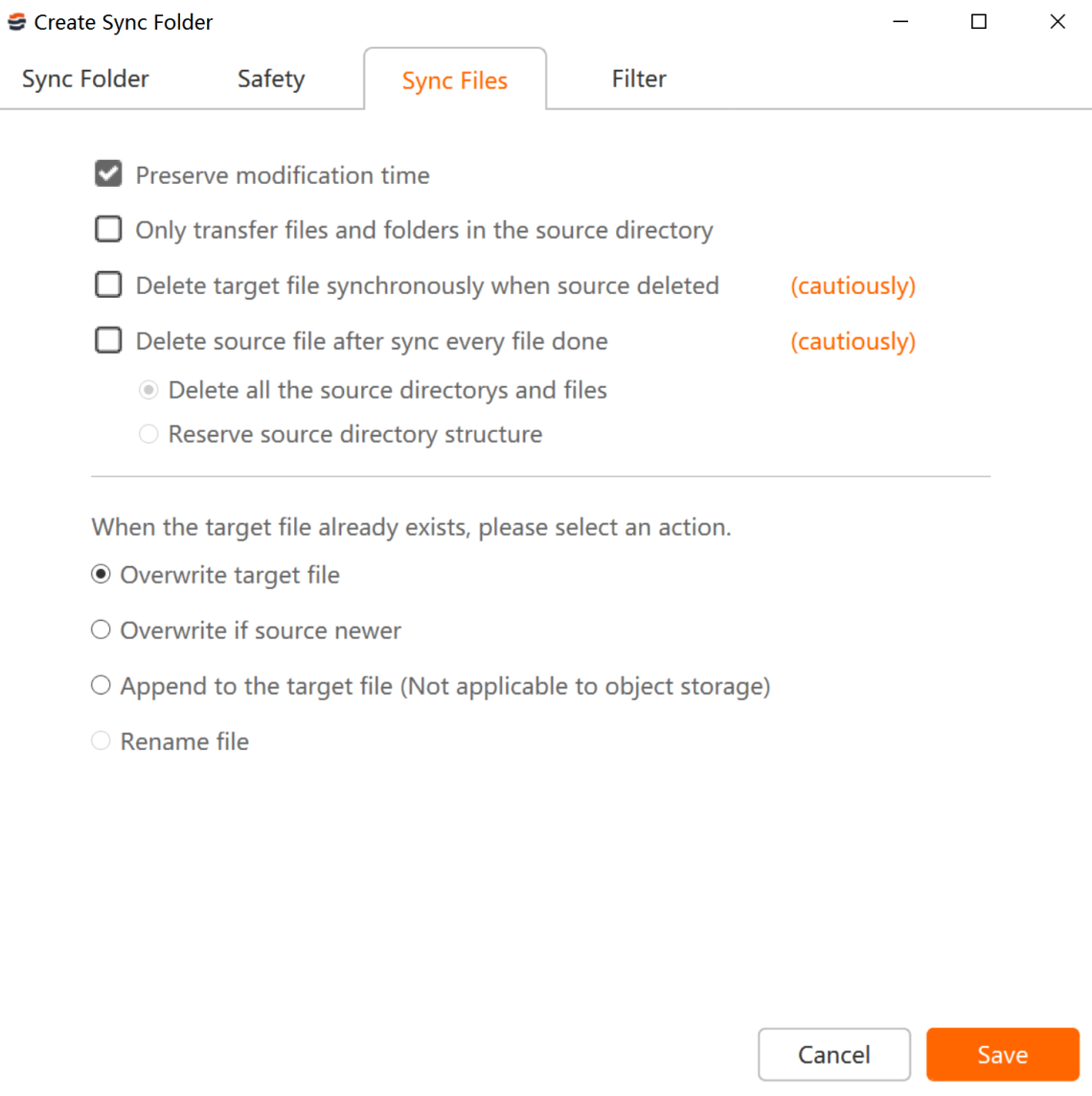

Document Handling

Selection of file processing method: retain file modification time; transfer only files and folders in the source directory; when the source file is deleted, the target file is automatically deleted; after each file sync is completed, the source file is automatically deleted; two-way sync

Function	Description
Preserve modification time Enabled	Enabled: After the synchronization task is completed, the modification time of the file is the same with the local modification time. Disabled: After the synchronization task transfer is completed, the modification time of the file is the same with the current client transfer completion time.
Only transfer source files	Enabled: The folder of the first layer will not be transmitted Disabled: All files and folders in the directory will be transferred.
Delete target file synchronously when source deleted	Enabled: if the file of the source or destination path is deleted, the other party's file will also be deleted synchronously. For example, if the local directory A is synchronized to the server, if the "test" file in the A directory is deleted, the "test" file on the server will be deleted synchronously. Tips: Root directory is not supported; "Delete Synchronously" and "Transfer source files only" can notenabled both.
Delete source file after sync every file done	Automatically delete the source directory after each synchronization is complete. 1) Delete all source directory and file For example, synchronize the local A directory to the server. After the synchronization tasks are completed, the local A directory and the files in a directory will be automatically deleted. 2) Reserve the source directory structure Only delete the files in a directory, neither Directory A and A directory of A are not deleted
File update	When the target file already exists and content is inconsistent with the source file,you have two updatesways 1) Overwrite target file Directly overwrite existing file contents 2) Overwrite if sou rse newer Overwrite if the last modification time of the uploaded or downloaded file is newer than the time of the target file. 3) Append to the target file (Notapplicable to object storage) Append the new file contents to the end of the target file 4) Rename file Rename the source file when the source file has the same name as the target file For example: if test exists in the target path, if a test with different content is uploaded, the newly uploaded file will be renamed to test(1).

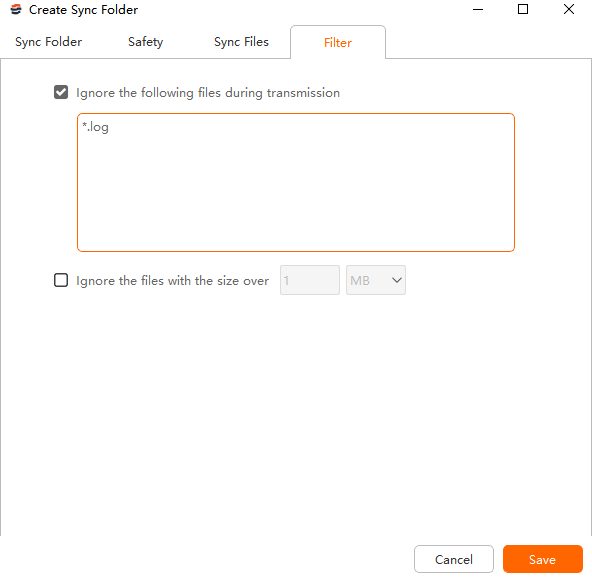

File Filter

Eligible files can be filtered during transfer to skip transfer. For example, filter out log type files, or filter files with a file size exceeding 1GB.

sync4a

2.11 File preview

Click on the picture or video file to preview it online

Preview Process

Picture Preview Check the picture you want to preview, click the location of the file name, you can preview it online.
The picture format supports preview such as png,jpg,gif,jpeg,bmp,ico
