Support Integrate Windows Active Directory and OpenLdap user.

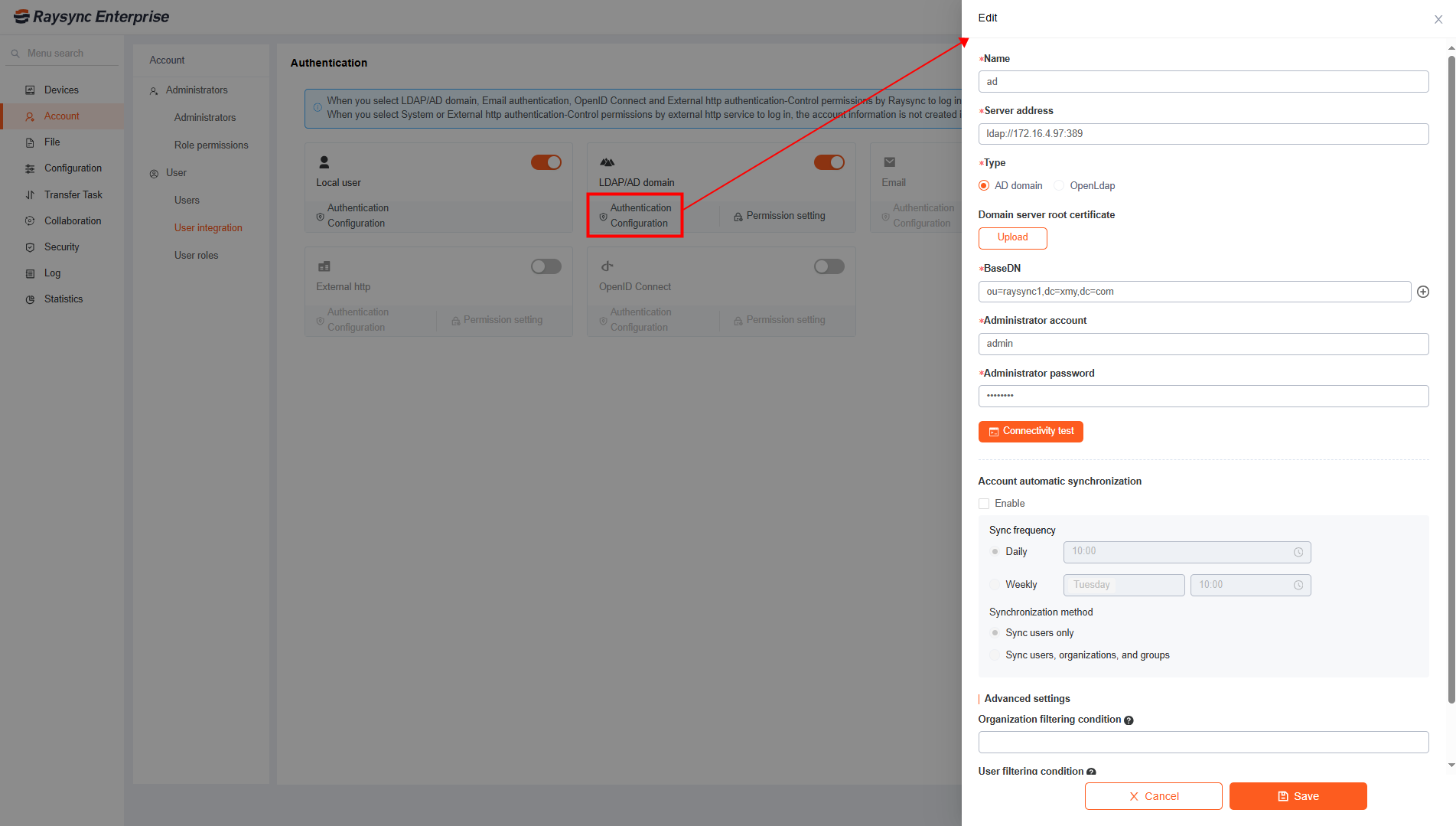

Click User Integration, select LDAP/AD domain - Authentication Configuration.

1. AD

Configuration instructions:
User1 and the group is under the RD organization unit, the RD organization unit is under BU organization unit, the BU organization unit is under abc.com domain. user1 Path: abc.com/BU/RD/group/user1，the group path:abc.com/BU/RD/group

1) If only import user1 into Raysync, you need to configure:
Domain account path: cn=user1, ou=RD, ou=BU, dc=abc, dc=com
Domain account and password: user1’s display name and user1’s password

2)If need to configure all the accounts under the group, you need to configure:
Domain account path: cn=group, ou=RD, ou=BU, dc=abc, dc=com
Domain test account and password: A user’s display name and this user’s password under RD organization unit.
If need to configure users from multiple organization units, please add the corresponding domain paths.
Note: Import group user not supported, the group users will be displaied on user list after login.

3)If need to import all the account under the RD organization unit, you need to configure:
Domain account path: ou=RD, ou=BU, dc=abc, dc=com
Domain test account and password: A user’s display name and this user’s password under RD organization unit.
If need to import users from multiple organization units, please add the corresponding domain paths.

4)If need to import all the users from the domain, you need to configure:
Domain account path: dc=abc, dc=com
Domain test account and password: A user’s display name and this user’s password under abc.com

Log in to the domain account at the user portal, you need to log in using User SamAccountName.

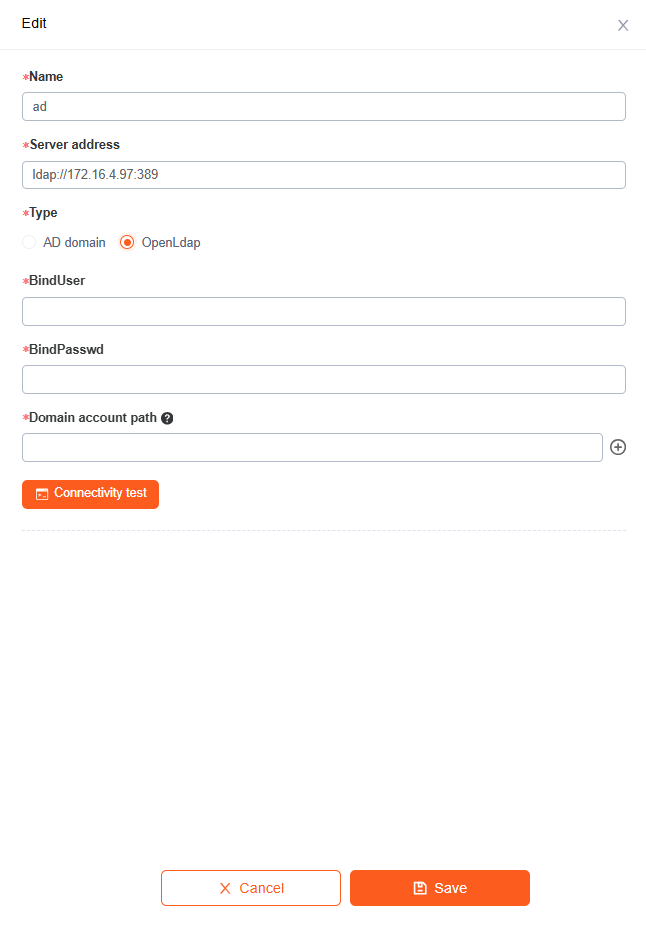

2.  OpenLdap



Configuration instructions:
User 1 and the group is under the RD organization unit, the RD organization unit is under BU organization unit, the BU organization unit is under abc.com domain. user1 Path: abc.com/BU/RD/group/user1，the group path:abc.com/BU/RD/group
then,BindUser: uid=user1,ou=RD,ou=BU,dc=abc,dc=com (Binduser can also be any user in the abc.com domain)
BindPasswd: should be user1
1. If only import user 1 into Raysync, then
Domain account path: uid=user1, ou=RD, ou=BU, dc=abc, dc=com
2.If need to configure all the accounts under the group, then
Domain account path: cn=group, ou=RD, ou=BU, dc=abc, dc=com
If need to configure users from multiple organization units, please add the corresponding domain paths.
Note: Import group user not supported, the group users will be displayed on user list after login.
3.If need to import all the account under the RD organization unit, then
Domain account path: ou=RD, ou=BU, dc=abc, dc=com
If need to import users from multiple organization units, please add the corresponding domain paths.

3. Add default authentication

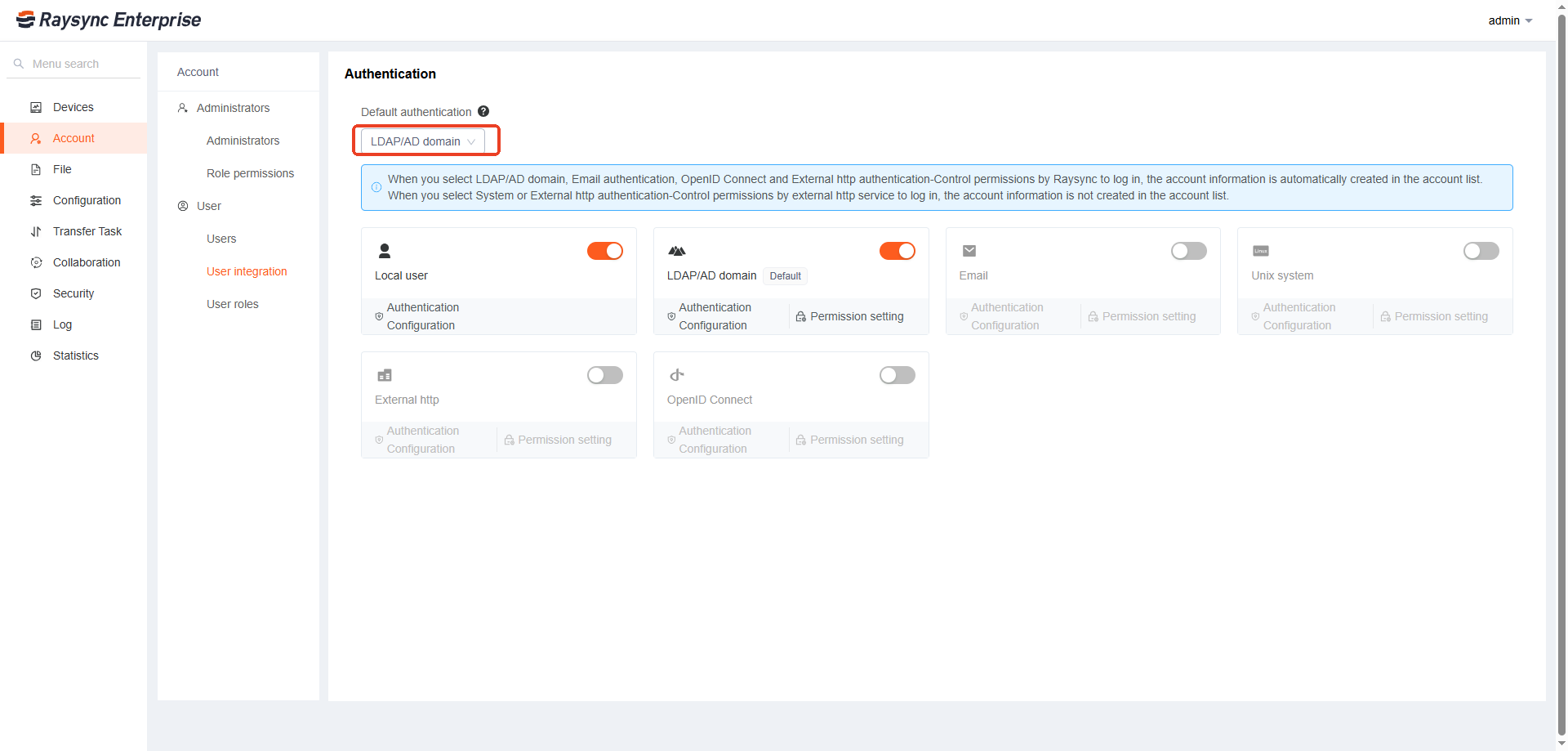

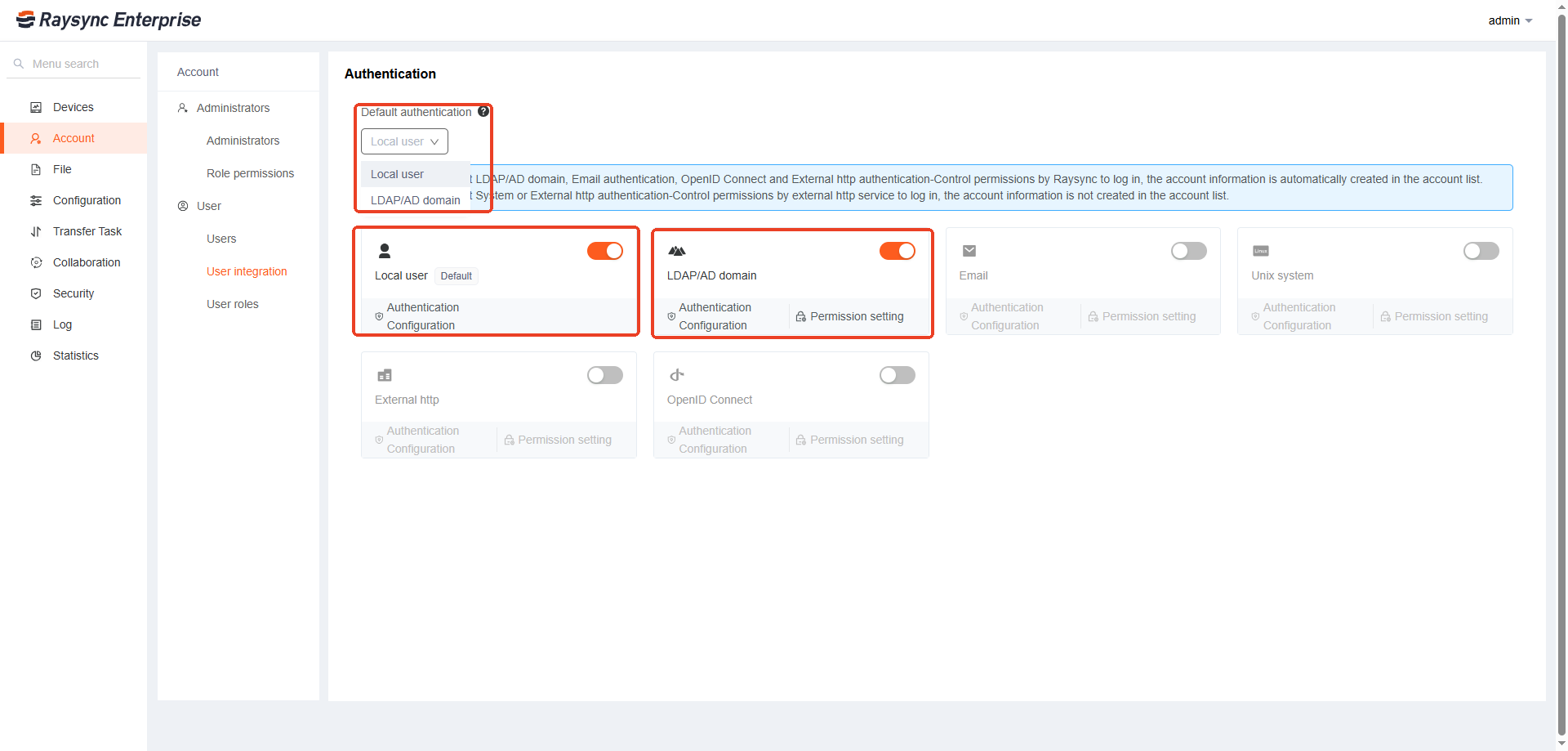

Configure the corresponding login method as shown in the figure (default is local login). Then, select the desired default login method. Once configured, users can log in using the selected method.

1）Configure login using LDAP/AD domain

• Fill in the LDAP/AD domain configuration information.
• Set the authentication method as the default login method.

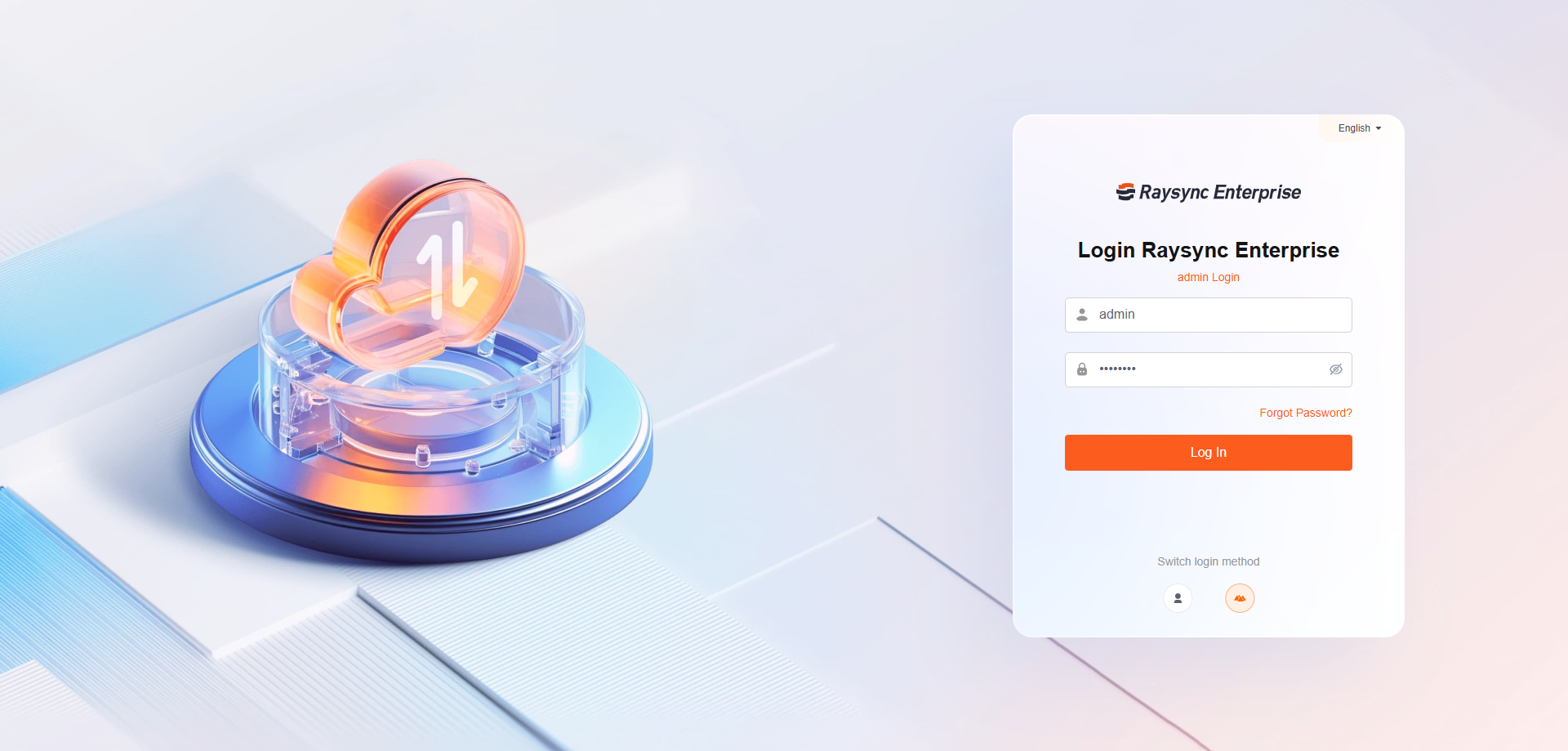

• The user can log in using the LDAP/AD domain.
